- What is the capacity of the concrete mixer do you need?
- What is the height or length distance you want to deliver the concrete?
- How big the maximum aggregate size in the concrete?
- Which type do you prefer? Electric motor driven or diesel engine driven?
If you know the above information, please contact us by email or online service and leave your contact information. Our professional salesman will contact you within 24 hours to discuss about the solution with you.
Small and Medium Concrete Pump
XBS/DXBS Fine Stone Concrete Pump
Concrete Mixer Pump
25-33m Concrete Boom Pump
HMC5025 Truck Concrete Pump Boom

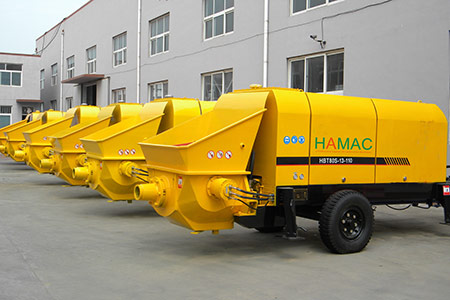

Introduction
On the basis of mature electric commutation technology, we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constant pressure pump, accumulator and approach switch four parts that ate extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps (diesel engine concrete pumps)mainly cover capacity from 30-120 m3/h and pressure from 5-20Mpa.

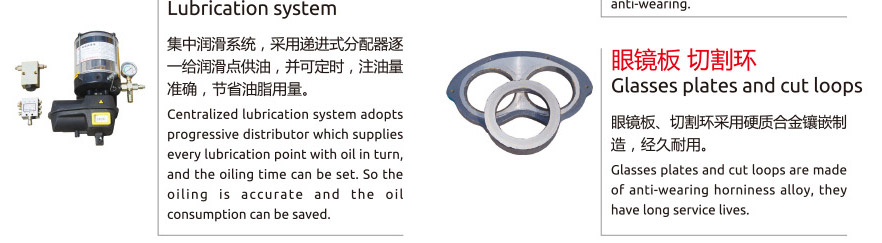

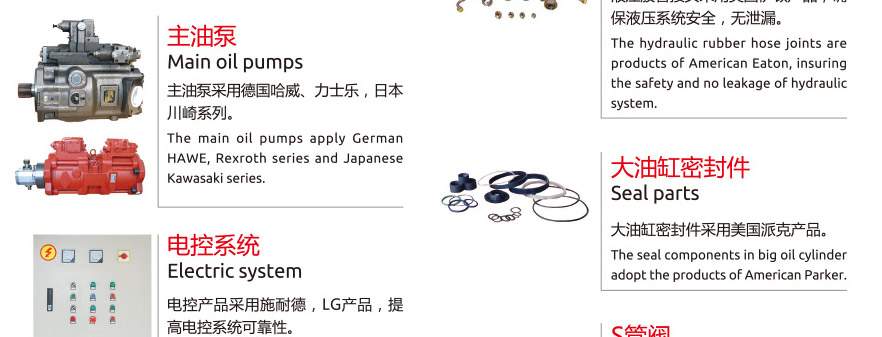

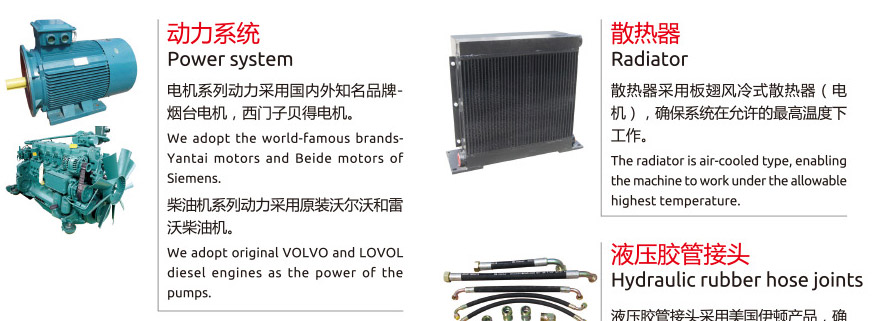

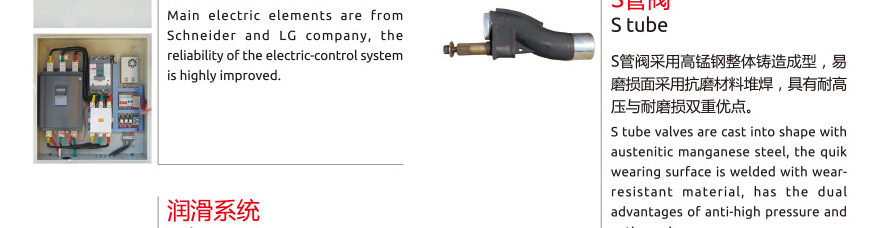

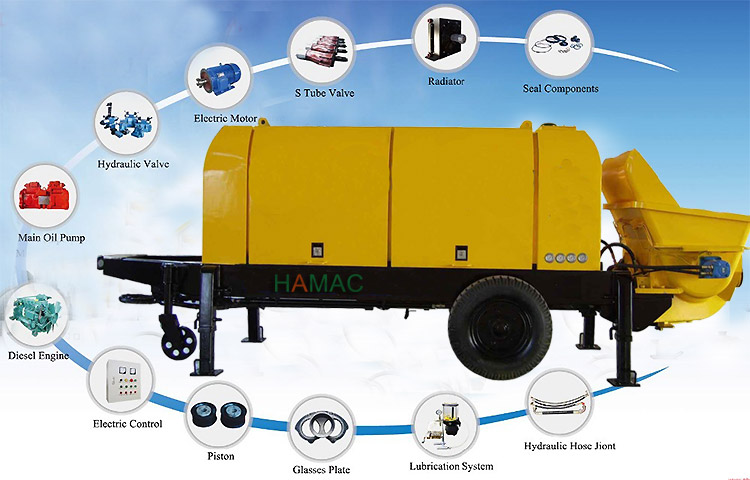

Performance
Specification
Electromotor concrete pumps:
| Item | Unit | S valve concrete pomp | |||||
| HBT60S-9 | HBT60S-13 | HBT60S-16 | HBT80S-13 | HBT80S-16 | |||
| Theoretic concrete delivery volume | Low pressure | M3/h | 60 | 60 | 60 | 80 | 80 |
| High pressure | M3/h | 36 | 36 | 35 | 47 | 46 | |
| Concrete delivery pressure | Low pressure | Mpa. | 5.7 | 7.6 | 9.6 | 7.6 | 9.6 |
| High pressure | Mpa. | 9 | 12.5 | 15.7 | 12.5 | 15.7 | |
| Hydraulic pressure | Mpa. | 26 | 32 | 32 | 32 | 32 | |
| Electric motor speed | r/min | 1480 | |||||
| Main oil pump | Original German Hawe, Rexroth series Japanese Kawasaki | ||||||
|
Main cylinder dia./pole dia.× stroke |
mm | 125/80×1650 | 125/80×1650 | 140/90×1650 | 125/80×1650(1800) | 140/90×1650(1800) | |
| Diameter of delivery cylinder | mm | 200 | |||||
| Electric motor power | kW | 75 | 90 | 110 | 110 | 132 | |
| Capacity of hydraulic oil tank | L | 500 | |||||
| Hopper capacity | M3 | 0.6 | |||||
| Overall weight | Kg | 6000 | 6000 | 6200 | 6200 | 6500 | |
| Max.delivery distance | Vertical | m | 150 | 180 | 250 | 180 | 250 |
| Horizontal | m | 600 | 700 | 1000 | 700 | 1000 | |
Diesel engine concrete pumps:
| Item | Unit | S valve concrete pomp | |||||
| DHBT60S-13 | DHBT60S-16 | DHBT80S-13 | DHBT80S-16 | DHBT80S-18 | |||
| Theoretic concrete delivery volume | Low pressure | M3/h | 60 | 60 | 80 | 80 | 80 |
| High pressure | M3/h | 36 | 35 | 47 | 46 | 48 | |
| Concrete delivery pressure | Low pressure | Mpa. | 7.6 | 9.6 | 7.6 | 9.6 | 10.6 |
| High pressure | Mpa. | 12.5 | 15.7 | 12.5 | 15.7 | 18 | |
| Hydraulic pressure | Mpa. | 32 | 32 | 32 | 32 | 32 | |
| Main oil pump | Original German Hawe, Rexroth series Japanese Kawasaki | ||||||
| Diesel engine(can be selected) | Original VOLVO/DEUTZ imported from Germany | ||||||
|
Main cylinder dia./pole dia.× stroke |
mm | 125/80×1650 | 140/90×1650 | 125/80×1650(1800) | 140/90×1800 | 140/900×1800 | |
| Diameter of delivery cylinder | mm | 200 | |||||
| Diesel engine power | kW | 118 | 145 | 145 | 176 | 195 | |
| Fuel consumption | g/kWh | 218 | 223 | 223 | 228 | 233 | |
| Capacity of hydraulic oil tank | L | 500 | |||||
| Hopper capacity | M3 | 0.6 | |||||
| Overall weight | Kg | 6300 | 6500 | 6800 | 7300 | 7800 | |
| Max.delivery distance | Vertical | m | 180 | 240 | 180 | 240 | 260 |
| Horizontal | m | 500 | 600 | 500 | 600 | 700 | |
